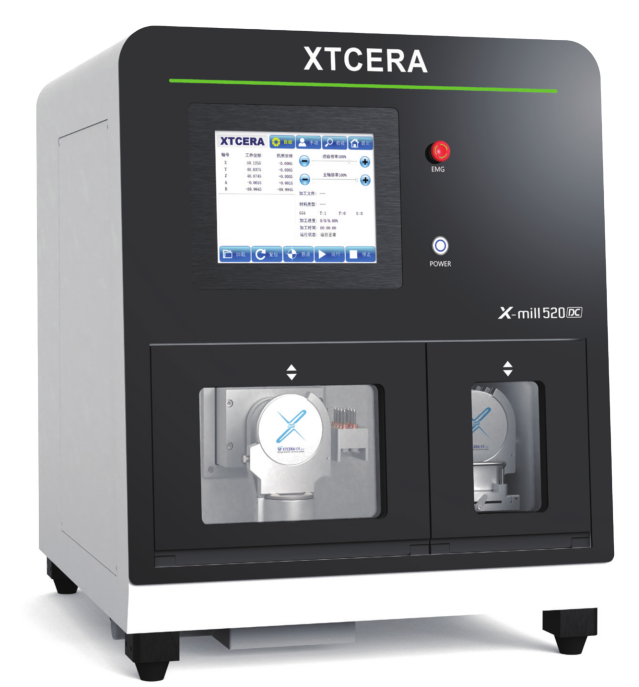

5 axis Milling Machine Xtcera-520DC

Dimension: 675x770x810(mm) Net weight: 170kg

lnput voltage: AC 220V Spindle power: 0.5kw

Axis quantity: 5 Milling range: XYZ: 260x120x120mm A :360° B: 0-120°

Repeated positioning accuracy: 4μm Milling mode: Dry milling

Max speed: 60,000 rpm Max feeding speed: XYZ: 3000 mm/min

Air supply pressure: ≥0.6Mpa Bur capacity: 8

Tool change mode: ATC Spindle cooling: Air cooling

Bur changing: Automatic Disc changer magazine: 6/Automatic

Materials: Zirconia, PMMA , Wax, Soft metal

Millable Case Type: Crown&bridge, Inlay&onlay, Veneer, Abutment crown, Splint&retainer, Removable Denture

Milling time: Zirconia: 10mins, Wax: 4mins, PMMA/PEEK: 10mins
