Rapid sintering furnace for Zirconium Kiwi SF9

Rapid sintering furnace for Zirconium Kiwi SF9

SEE MORE INFO

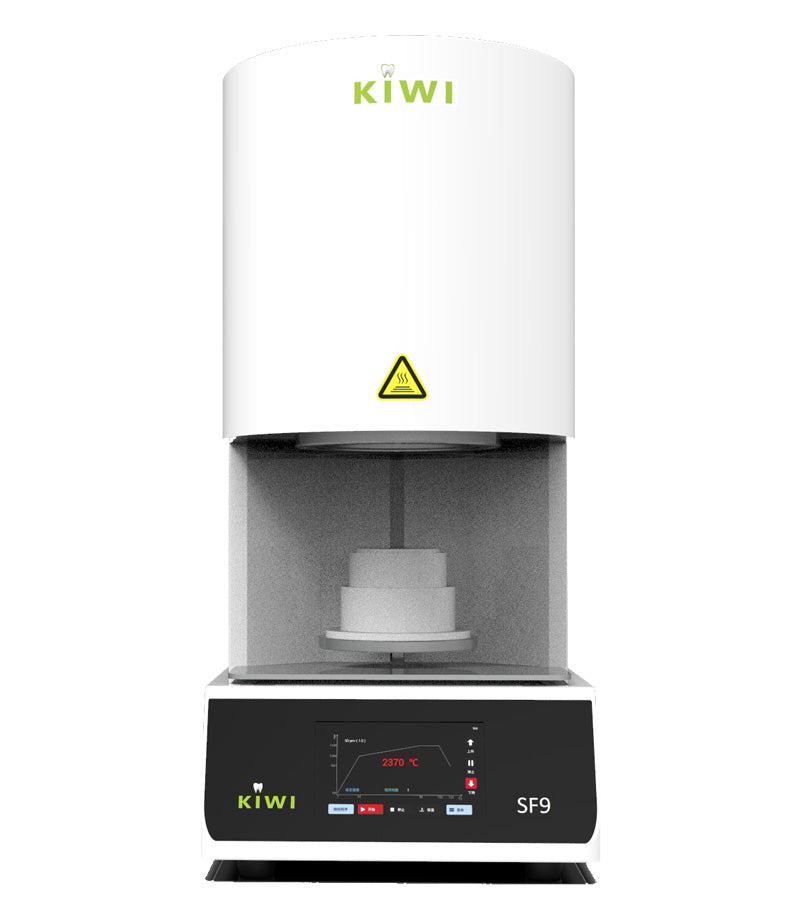

SF9 is a unique rapid sintering furnace for zirconia. The latest generation rapid sintering product has achieved a perfect balance with Kiwi zirconia materials. At the same time, the furnace opening system at 900°C for cooling and intelligent management systems have significantly improved the efficiency of dental prosthesis processing. The design and color make it suitable for laboratories and clinics.

Technical specifications

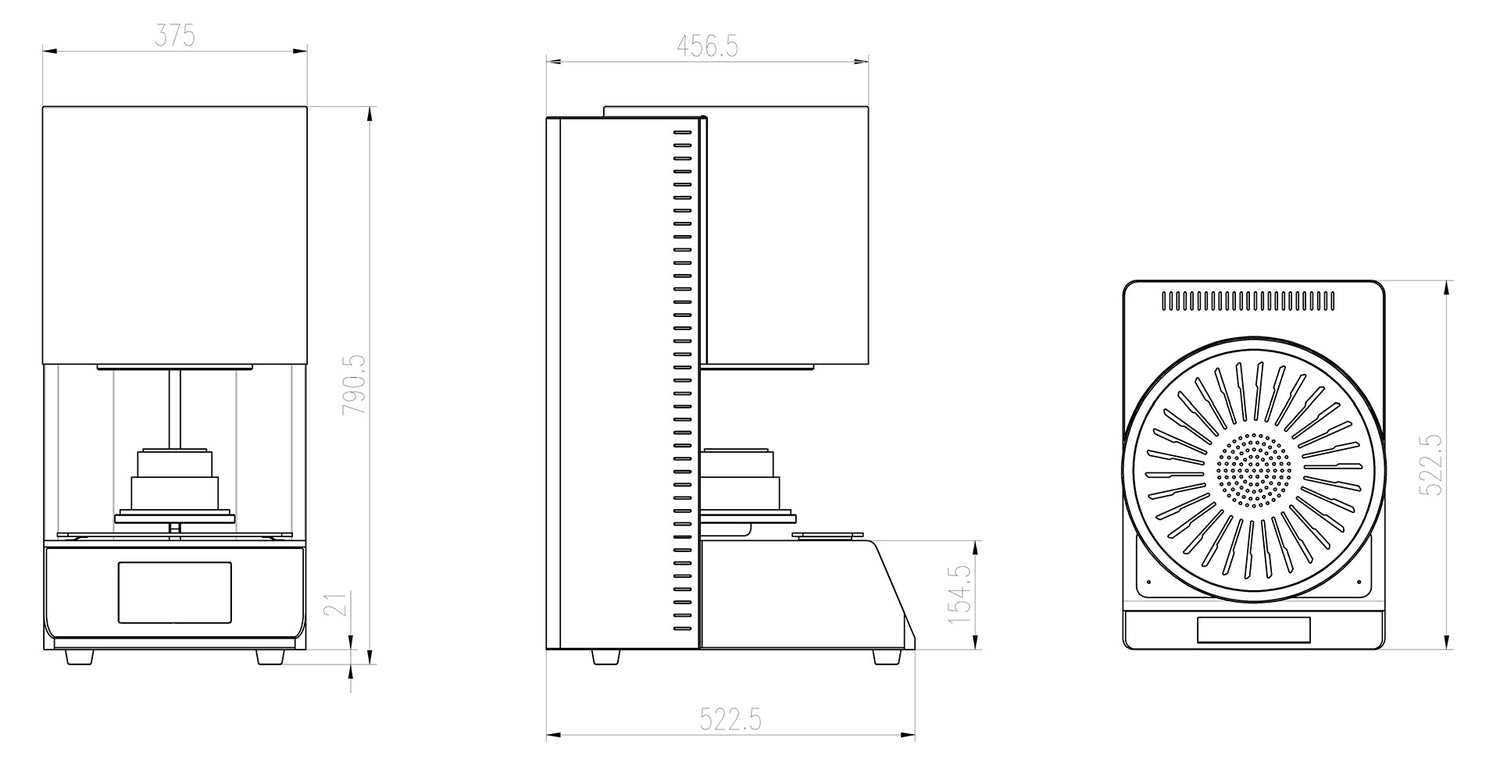

Dimensions (WxDxH): 375mm x 522.5mm x 790.5mm

Weight: approx. 60 kg

Voltage: 220V / 50-60Hz

Max Power: 3000W

Max Sintering Temperature: 1600°C

Chamber Diameter: ¢100mm

Chamber Volume: 0.95L

Capacity: up to 100 zirconia units

Accessories: Silicon carbide rods, Sintering tray, Tweezers, Zirconia beads, PTCR

View full details

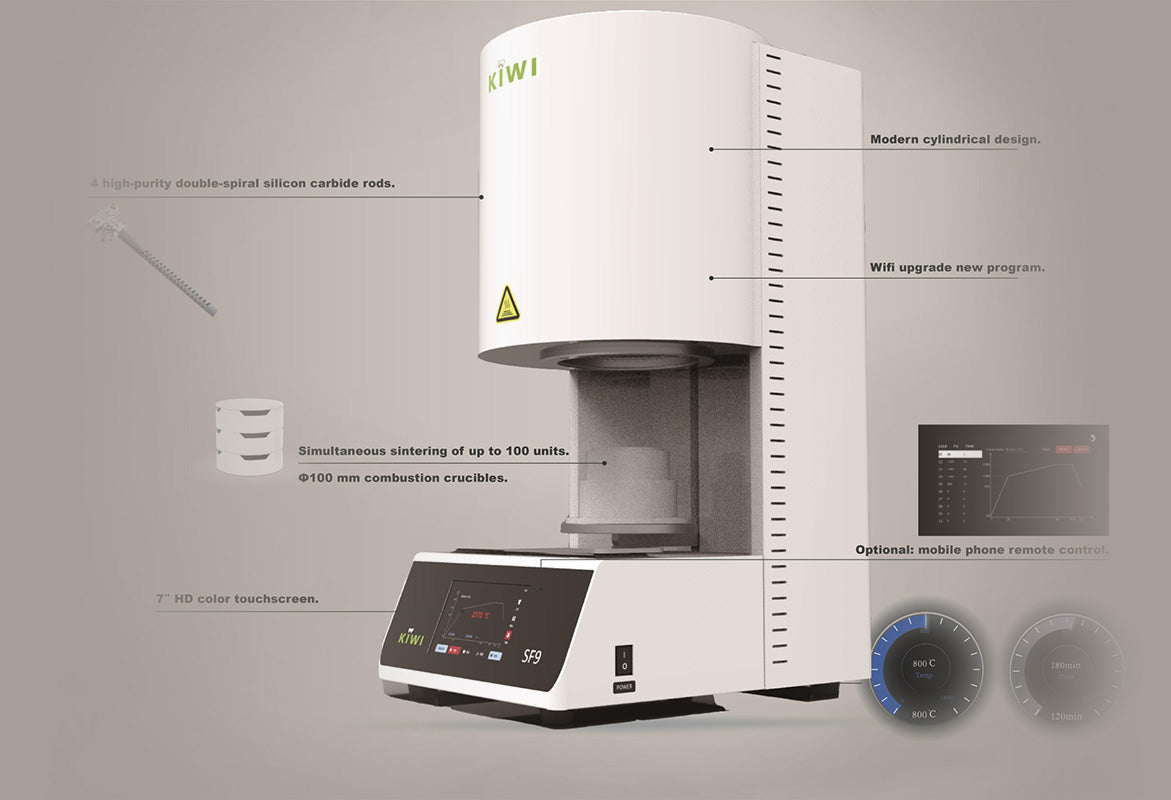

  • Advantages

    Conventional sintering and rapid sintering can be switched

    20 preset programs

    Pre-drying – drying can be integrated into the sintering program

    Speed

    Fast heating rate (up to 120°C/min.)

    Rapid cooling control – the furnace opens automatically during the cooling stage

    Larger firing chamber, simultaneous sintering of up to 100 units by stacking three sintering trays

    Continuous sintering with stop point – sintering can be manually resumed from the interrupted program to avoid repetition

  • Intuitive

    One-click temperature calibration

    Online program upgrade via WiFi

    Eco-friendly

    Pollution-free – equipped with 4 double-spiral high-purity silicon carbide rods

    Sintering element replacement warning – sintering elements trigger replacement alerts when nearing the end of their average lifespan

    Resumption of sintering after power interruption
