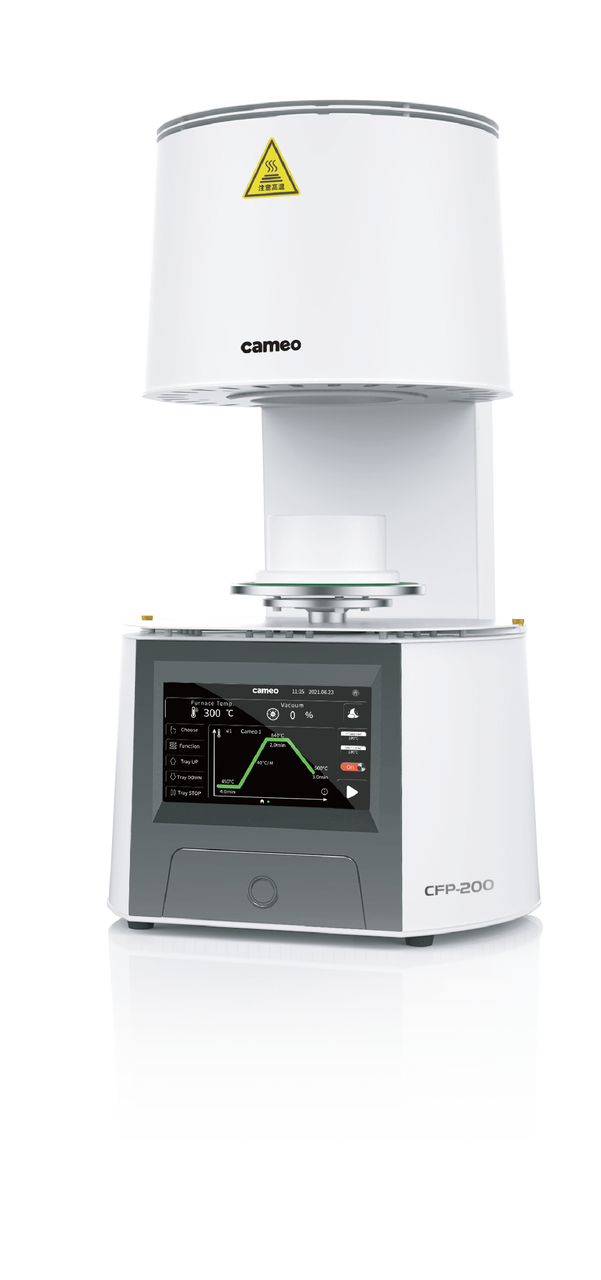

Ceramic sintering furnace Aidite Cameo CFP-200

Ceramic sintering furnace Aidite Cameo CFP-200

SEE MORE INFO

The new generation of intelligent ceramic furnaces, with stable vacuum heating technology and intelligent temperature control. The ultra-sealed structure and quartz resistance heating unit improve heating reliability, accelerating the heating process by 30% and preventing aging of the heating unit, while ensuring the cleanliness of the chamber. The second-stage program meets the specific requirements of various processes.

Advantages CFP-200
Temperature accuracy ±1°C
Real-time feedback every 1 second/hour through the AI intelligent temperature control system
Precise comprehensive 3-stage heating process
Automatic furnace drying and shutdown
Automatic heat dissipation and adjustable cooling temperature

Technical specifications

Dimensions: 362×316×596(mm)

Weight/Package: 28kg/34kg

Temperature Increase Rate: 1℃~100℃/min

Chamber Dimensions: 95mm×65mm

Heating Unit: Spiral quartz tube & Nickel-chromium wire

Model: CFP-200

Voltage: 220V/110V AC 50/60Hz

Max Temperature: 1100℃

Vacuum: Vmax= 95%

Temp Accuracy: ±1℃

Cooling: Fans cooling

Warranty: 1 year

Power: 1.5KW

Furnace Structure: Tray elevator

Temp. Control System: AI intelligent Temp. control

View full details

From stain and glaze to crystallization, the fully equipped CFP-200 meets the demands of today's CAD/-CAM dental laboratory and practice. The AI intelligent control system accurately holds the temperature in all stages of the heating and cooling process. Featuring quartz tube heating technology and an ultra-sealed tray structure to keep the furnace clean and prolong its life, the reliable and user-friendly CFP-200 always produces beautiful restorations.
