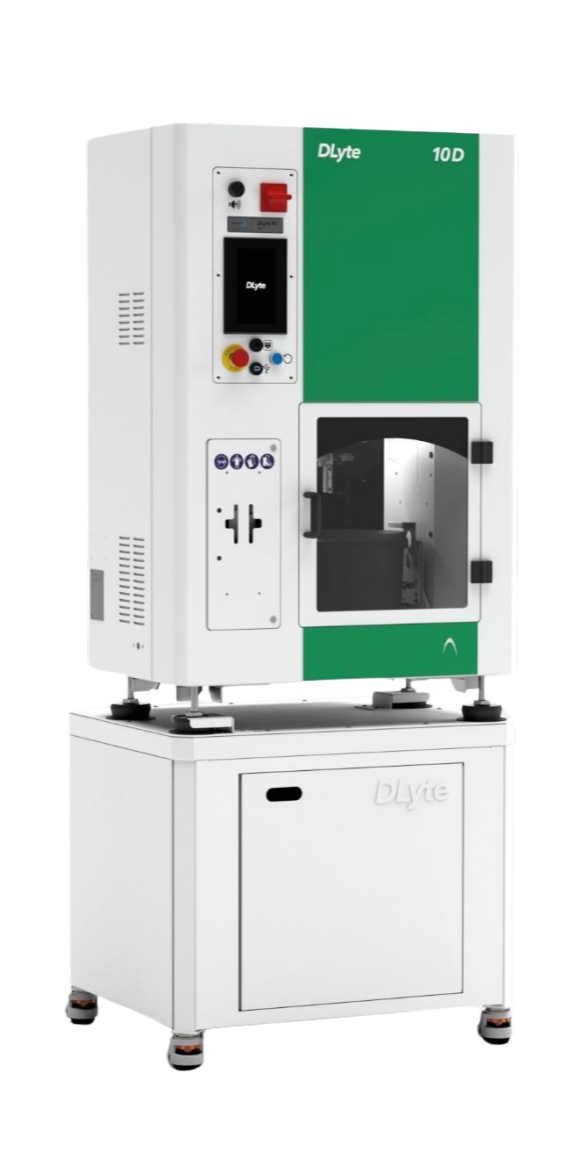

Electropolishing Equipment D-lyte 10D
Electropolishing Equipment D-lyte 10D
DLyte 10D uses the dry electropolishing technology to polish any casting,sintered or milled pieces.It offers high-quality polishing for Cobalt-Chrome and Titanium for all types of spacers,crowns,bars,anatomical structures,implants and orthodontic supports.It has a Capacity of 6 RPDs,12 crowns,8 bars for each working cycle with an average of 20-40 minutes time cycle.Its automatic one-step process reduces the complexity of current multi-step process substituting electrolytic bath and labor,therefore reducing costs and time,while achieving traceable and predictable results.
Technical specifications
Technical specifications
TECHNICAL DATA
Work piece weight capacity: 5 kg
Bucket capacity (per cycle): Ø140 x 75 mm
Bucket capacity (per cycle) DENTAL: 6 RPDs, 12 crowns, 8 bars
Machine dimensions (L x W x H): 820 x 675 x 2000 mm
Machine weight: 174 kg
Support weight: 64 kg
ELECTRICAL
Power (Main socket): 3 kW
Full load current (Main socket): 13 A
Voltage: 230 V ~ ±10 % (1Phase + N + PE)
Frequency: 50 - 60 Hz
Grounding connection: TN-S system
Power cable extension: 3 m
Power connector type: CETAC 32A plug 2 poles + PE
Rated current: 25 A
Sensitivity current: 30 mA
Applicable earth leakage breaker: To be prepared by customer
Cable Qty x size (including ground): 3 cores x 4.0 mm²
HYDRAULIC
Distilled water tank capacity: 9 L
PNEUMATIC
Air pressure: 4 - 5 bar
Air hose inlet: Ø8 mm or 1/4" BSP
Air quality (ISO 8573-1): [5:4:4]
Filter [5]: < 1 µm
Air dryer [4]: Dew point < 3°C
Oil [4]: < 5 mg/m³
Line air supply: 40 L/min
ENVIRONMENTAL
Acoustic pressure emission: < 70 dB(A)
Operating temperature: +5 °C to +35 °C
Storage temperature: -10 °C to +70 °C
Recommended humidity: 30 - 70 % RH without condensation
Machine Index Protection: IP20
Electric cabinets and peripherals IP: IP22
OPERATIONAL
Main turning: Yes
Auxiliary turning connector (holder motor): Yes - 24V
Vertical movement: Yes
Holder vibration connector: Yes
Base vibration: Yes
External pneumatic stop cock: Yes
HMI size: 7"
Tower light: Accessory
Media refrigeration: No
Air cleaning gun: No
Cleaning bucket: No
Holder mixer: No
Tester tool: Yes
02 BUCKET TYPE
Cathode Set Dry Electrolyte: Yes
Cathode Set Dry Suspension Electrolyte: Yes
Cathode Set Dry Suspension Electrolyte with refrigeration system: No
CAPACITY
Electrolyte capacity: 9 L
